Does B58 3.0 exhaust have a downpipe-to-exhaust gasket?

[wack]

I'm preparing to do a downpipe install and I got a new turbo outlet-to-DP gasket, but I'm wondering about whether there is also a DP-to-midpipe gasket?

Common wisdom is to replace all the gaskets when uncoupling exhaust parts, so I would like to replace the DP outlet gasket too.

But I've searched high and low and haven't found anything in Toyota schematics that shows a gasket from DP outlet-to-catback exhaust inlet.

Do our cars not have a gasket between DP and catback?

Sponsored



[MisterSkiz]

No, it just slides on and clamps.

Make sure to keep the downpipe v band loose as well as the body mounts to the downpipe and get the catback mounted and fit first before tightening anything.



[MisterSkiz]

See this thread for install tips/tricks

https://www.supramkv.com/threads/installed-a-titan-catless-downpipe-yesterday.18810/



[Loco38SUP]

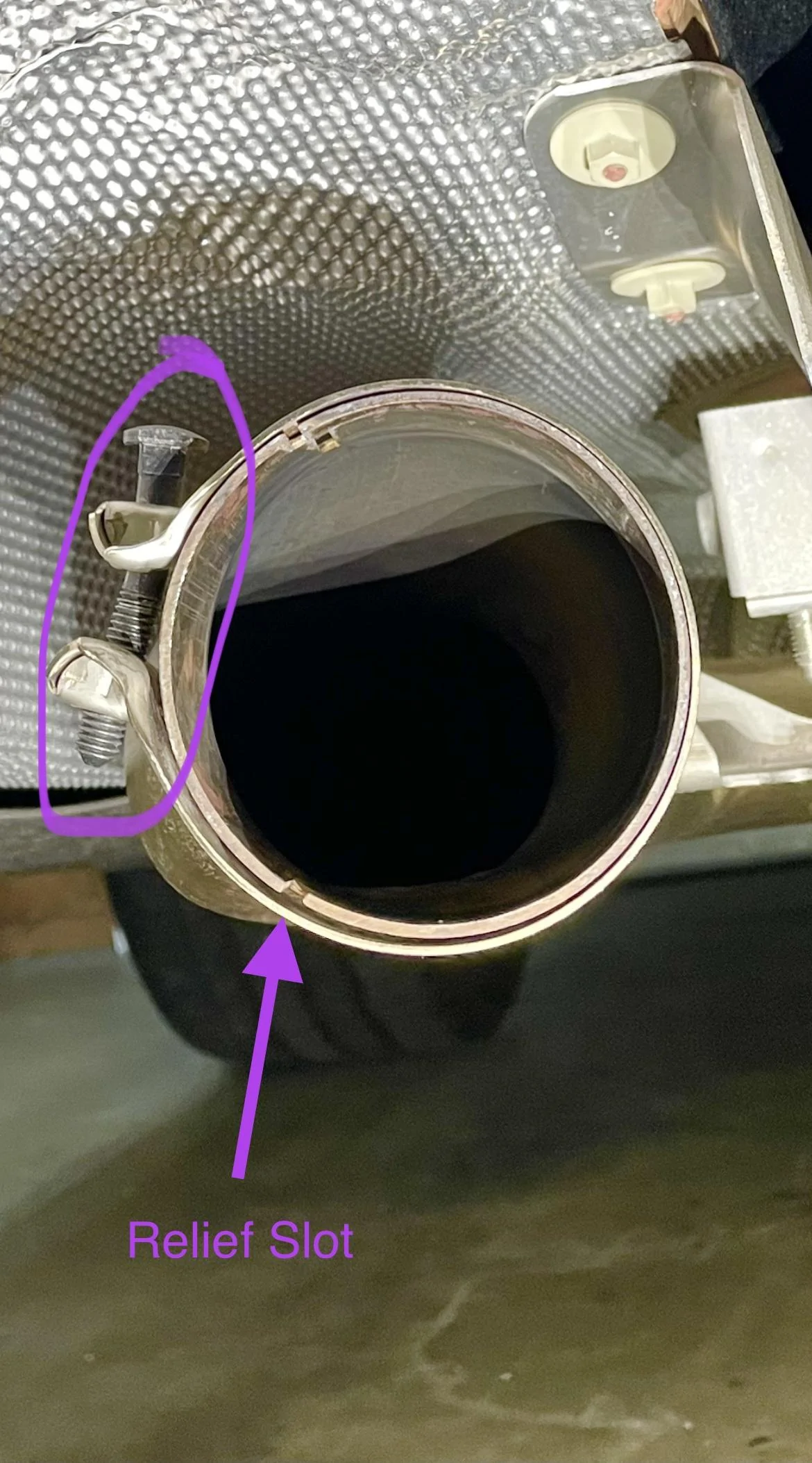

No gasket, the downpipe feeds into the mid-pipe and is clamped.

-RJM



[wack]

No gasket, the downpipe feeds into the mid-pipe and is clamped.

-RJM

I also bought a new Vband clamp for the downpipe. Probably not necessary but I've seen it recommended . The clamp for the DP-to-midpipe looks pretty beefy, so I'm not gonna replace it.

Thanks for the photo!



[NitroYellowMKV]

nope! just the gasket to the turbo/dp nothing needed for the midpipe!



[wack]

For future reference, Part Numbers for:

Turbo outlet gasket: 17279-WAA02
Turbo-to-DP VBand clamp: 17452WAA02
Midpipe clamp: 90118WA387
